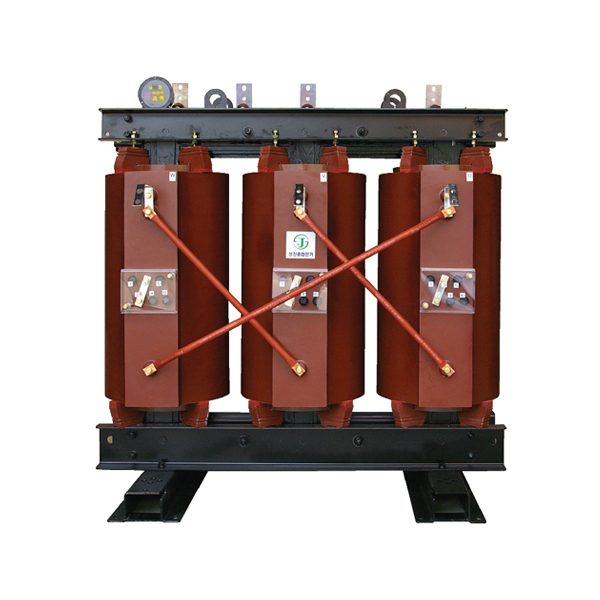

    Cast resin transformer (High efficiency)
    Using grain-oriented electrical steel and PHD-core as the silicone sheet of cast resin transformer and improving winding method, it optimizes total loss(no-load loss plus load loss) and significantly decreases noise - namely, it is low-noise and high efficient popular breitling avenger replica transformer.


     (1) No-load loss reduction

    Reduced standby power with more than 50 percent decrease of no-load loss against standard transformers by using grain-oriented electrical steel and PHD-core as the silicone sheet


    (2) Load loss reduction

    More than 20 percent decrease of load loss by optimal winding design.


    (3) Low noise

    Improved noise to decrease over 7 to 11dB compared with KS standard




    Applicable Standard

    		 IEC 60076-11, KS C 4311

    Frequency

    		 50, 60Hz

    Insulation class

    B or F

    Temperature rise

    		 80℃ or 100℃
    BIL (kV)

    System Voltage

    Power frequency withstand voltage

    Impulse Voltage
    24 7.2 3.6 0.6 below
    50 20 10 3
    95 40 20 -

    Primary voltage (kV)
    22.9 6.6 33.3 0.6 below

    Tap voltage (kV)

    F23.9-R22.9-
    21.9-20.9-19.9    		 F6.9-R6.6-6.3-
    6.0-5.7    		 F3.45-R3.3-3.15-
    3.0-2.85    		 -

    Secondary voltage (kV)

    		 6.6, 3.3, 0.48, 0.44, 0.38, 0.22
